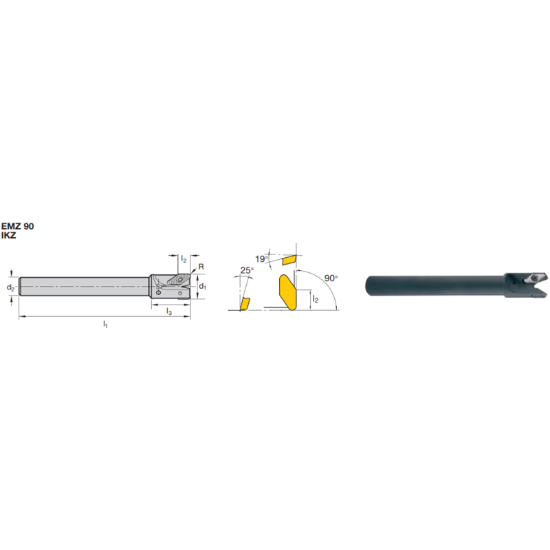

Picture of LMT FETTE EMZ90 V16.100WB-I Milling 90.0°, End Mill Milling Cutter 1.000 Cutter Diameter

LMT FETTE EMZ90 V16.100WB-I Milling 90.0°, End Mill Milling Cutter 1.000 Cutter Diameter

ANSI: EMZ90 V16.100WB-I

ISO: EMZ90 V16.100WB-I

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT0054286
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Insert Type Positive
Package Size 1
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.5300
Neck Length 2.0000 50.80MM
Flutes/Inserts 2
Tool Material Steel
Insert Size Ic 16
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Corner Radius 0.0500 1.27MM
Cutter Dia 1.0000 25.40MM
Overall Len 4.2800 108.71MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style VP
