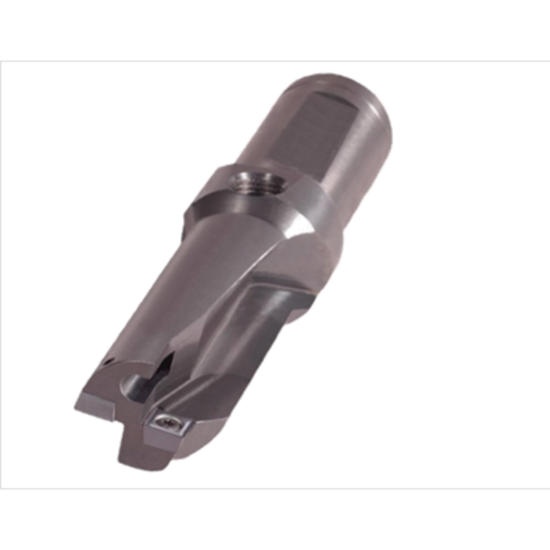

Picture of K-Tool FB-937 Multi Insert Drill 0.937 Cutter Diameter 1.000 Weldon

K-Tool FB-937 Multi Insert Drill 0.937 Cutter Diameter 1.000 Weldon

ANSI: FB-937

ISO: FB-937

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOFB-937
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Multi Insert Drilling, Flat Bottom Drilling
Made In USA Yes
Insert Application General Purpose
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Cutter Dia 0.9370 23.80MM
Machine Side Connection Type Weldon
Overall Len 5.0000 127.00MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Tool Over Hang 2.7500
Depth Of Cut Max 1.8750
Flutes/Inserts 2
Drill DOC 1.8750
Cutting & Machining Properties
Cool Sply Type Through
Inter/Extern Int / Ext
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 314T
