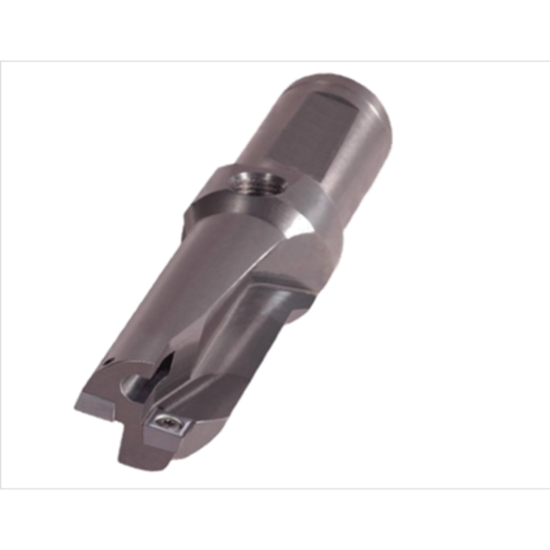

Picture of K-Tool FB-625-3 Multi Insert Drill 0.625 Cutter Diameter 0.750 Weldon

K-Tool FB-625-3 Multi Insert Drill 0.625 Cutter Diameter 0.750 Weldon

ANSI: FB-625-3

ISO: FB-625-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOFB-625-3
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA Yes
Insert Type Positive
Application Flat Bottom Drilling, Multi Insert Drilling
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 4.7500 120.65MM
Depth Of Cut Max 1.8750
Machine Side Connection Size 0.7500 19.05MM
Tool Material Steel
Tool Over Hang 2.7500
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Drill DOC 1.8750
Cutting & Machining Properties
Inter/Extern Internal
Cool Sply Type Through
Coolant Thru Yes
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 164T
