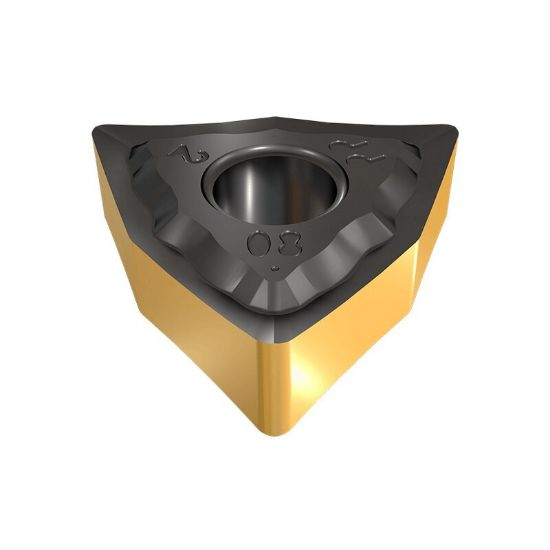

ISCAR WNMG433 PP IC30N Turning Insert Trigon Cermet 0.047 Corner Radius

ANSI: WNMG433 PP IC30N

ISO: WNMG080412 PP IC30N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5502914
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Double-Sided Trigon Inserts for Machining Very Ductile Materials at Medium Cutting Conditions

Grade and Coating Description

Cermet grade. Provides excellent resistance to wear and plastic deformation even at high cutting speeds and medium feeds. Useful for semi finishing and finishing.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Type Negative
Package Size 10
Insert/Tool Insert
Insert Application Roughing
Application Turning Insert
Made In USA No
Grade IC30N
Dimensional Specifications
Cut Rating <53HRC Steel, Stainless Steel
Insert Size Ic 12 "43"
Corner Radius 0.0470 1.19MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Cutting Edge Mat Cermet
Insert Style WN
