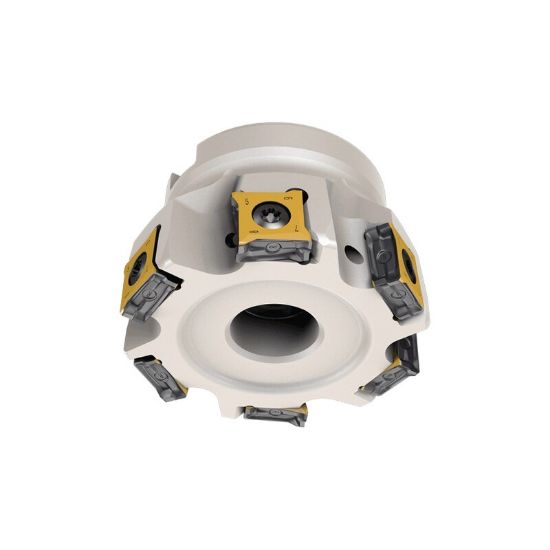

Picture of ISCAR T890HT FLND4.0-08-1.5-R13 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

ISCAR T890HT FLND4.0-08-1.5-R13 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

ANSI: T890HT FLND4.0-08-1.5-R13

ISO: T890HT FLND4.0-08-1.5-R13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3332803
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Texas
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.3740
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Tool Material Steel
Cut Dia Min 4.0000 101.60MM
Flutes/Inserts 8
Insert Size Ic 13
Cut Dia Max 4.0000 101.60MM
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 4.0000 101.60MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Cool Sply Type Through Hole
Insert Style LN
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 3331146
