  • ISCAR SOF45 8/16-D4.0-08-1.25R Milling Cutter 45.0° 4.000 Diameter Face Mill 1.250 1.480 OAL 8 Flute

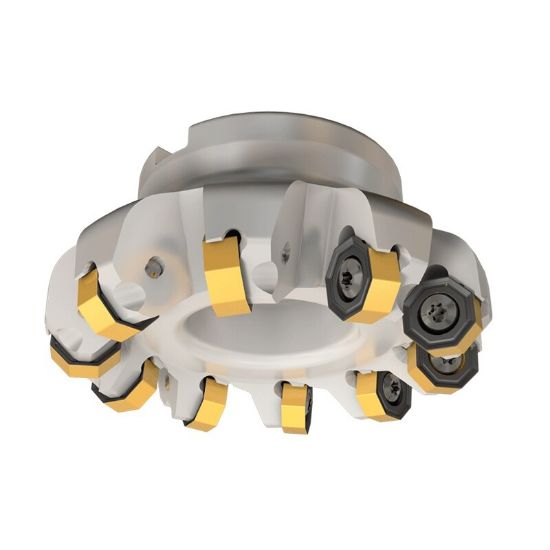

Picture of ISCAR SOF45 8/16-D4.0-08-1.25R Milling Cutter 45.0° 4.000 Diameter Face Mill 1.250 1.480 OAL 8 Flute

ISCAR SOF45 8/16-D4.0-08-1.25R Milling Cutter 45.0° 4.000 Diameter Face Mill 1.250 1.480 OAL 8 Flute

ANSI: SOF45 8/16-D4.0-08-1.25R

ISO: SOF45 8/16-D4.0-08-1.25R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104591
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Feed Milling, Round Milling, Face Milling
Shipping State Texas
Insert/Tool Tool
Insert Type Negative
Made In USA No
Package Size 1
Dimensional Specifications
Cutter Dia 4.0000 101.60MM
Flutes/Inserts 8
Depth Of Cut Max 0.1140
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Overall Len 1.4800 37.59MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 4.0000 101.60MM
Cut Dia Max 4.4090 111.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Multi
Cool Sply Type External
Insert Style SN,ON,RX,RN
Coolant Thru No
Fasteners & Connectors
Insert Screw 7004916
