  • ISCAR P290 ACK2.0-4-2.1-W150-18 Milling Cutter 90.0°, Corn Cob 2.000 Diameter Weldon 1.500 5.910 OAL 12 Flute

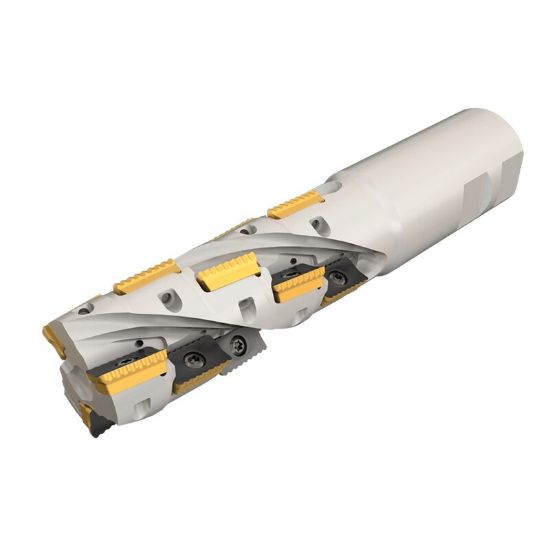

Picture of ISCAR P290 ACK2.0-4-2.1-W150-18 Milling Cutter 90.0°, Corn Cob 2.000 Diameter Weldon 1.500 5.910 OAL 12 Flute

ISCAR P290 ACK2.0-4-2.1-W150-18 Milling Cutter 90.0°, Corn Cob 2.000 Diameter Weldon 1.500 5.910 OAL 12 Flute

ANSI: P290 ACK2.0-4-2.1-W150-18

ISO: P290 ACK2.0-4-2.1-W150-18

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106252
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application Roughing
Insert Type Positive
Application Long Edge Milling, Side Milling
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 18
Depth Of Cut Max 4.1000
Cut Dia Min 2.0000 50.80MM
Machine Side Connection Size 1.5000 38.10MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Weldon
Tool Material Steel
Overall Len 5.9100 150.11MM
Flutes/Inserts 12
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Style AC
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7000402
