  • ISCAR MF FHX D4.00-09-1.50-R06 Milling Cutter Feed Mill 4.000 Diameter Face Mill 1.500 2.000 OAL 9 Flute

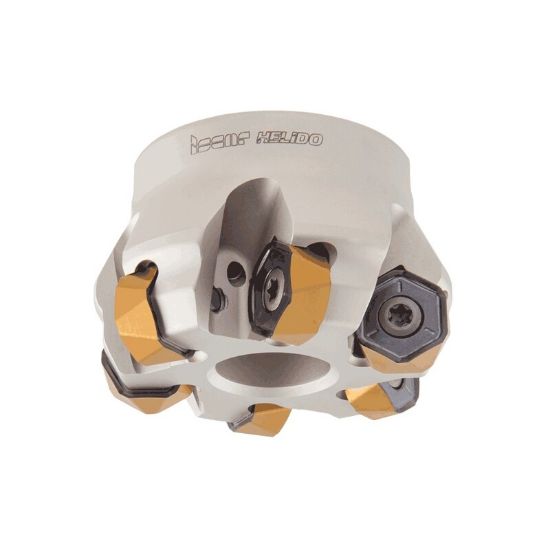

Picture of ISCAR MF FHX D4.00-09-1.50-R06 Milling Cutter Feed Mill 4.000 Diameter Face Mill 1.500 2.000 OAL 9 Flute

ISCAR MF FHX D4.00-09-1.50-R06 Milling Cutter Feed Mill 4.000 Diameter Face Mill 1.500 2.000 OAL 9 Flute

ANSI: MF FHX D4.00-09-1.50-R06

ISO: MF FHX D4.00-09-1.50-R06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3107210
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Feed Milling, Face Milling, Slot Milling, Copy Milling, Ramp Milling
Shipping State Texas
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.1180
Cutter Dia 4.0000 101.60MM
Insert Size Ic 6
Machine Side Connection Size 1.5000 38.10MM
Cut Dia Min 3.6200 91.95MM
Tool Material Steel
Flutes/Inserts 9
Cut Dia Max 4.0900 103.89MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Coolant Thru Yes
Insert Style H
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7000229
