  • ISCAR MF EWXD0.75-3-2.0W0.75-04 Milling Cutter Feed Mill 0.750 Diameter Weldon 0.750 4.200 OAL 3 Flute

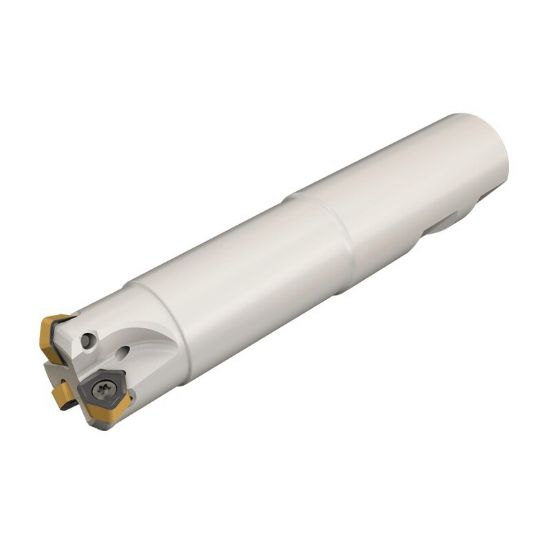

Picture of ISCAR MF EWXD0.75-3-2.0W0.75-04 Milling Cutter Feed Mill 0.750 Diameter Weldon 0.750 4.200 OAL 3 Flute

ISCAR MF EWXD0.75-3-2.0W0.75-04 Milling Cutter Feed Mill 0.750 Diameter Weldon 0.750 4.200 OAL 3 Flute

ANSI: MF EWXD0.75-3-2.0W0.75-04

ISO: MF EWXD0.75-3-2.0W0.75-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106345
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Ramp Milling, Slot Milling, Copy Milling, Feed Milling
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cut Dia Max 0.7500 19.05MM - 3/4
Overall Len 4.2000 106.68MM
Insert Size Ic 4
Depth Of Cut Max 0.0790
Cut Dia Min 0.4700 11.94MM
Tool Material Steel
Machine Side Connection Type Weldon
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Cutting & Machining Properties
Max Ramp Angle 2.60°
Insert Shape/Cutter Pocket Shape Trigon
Insert Style H
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7006316
