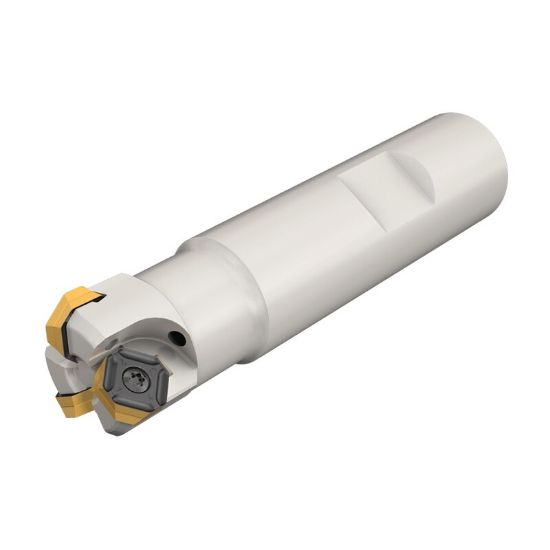

Picture of ISCAR IQ845 ESYD1.25-5W1.25-R05 Milling Cutter 50.0° 1.250 Diameter Weldon 1.250 4.000 OAL 5 Flute

ISCAR IQ845 ESYD1.25-5W1.25-R05 Milling Cutter 50.0° 1.250 Diameter Weldon 1.250 4.000 OAL 5 Flute

ANSI: IQ845 ESYD1.25-5W1.25-R05

ISO: IQ845 ESYD1.25-5W1.25-R05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106695
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Texas
Package Size 1
Insert/Tool Tool
Application Chamfering
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Insert Size Ic 5
Depth Of Cut Max 0.1020
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Flutes/Inserts 5
Cutter Dia 1.2500 31.75MM - 1-1/4
Cut Dia Max 1.4800 37.59MM
Cutting & Machining Properties
Insert Style SY
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type External
Coolant Thru No
Fasteners & Connectors
Insert Screw 7006316
Only registered users can write reviews
