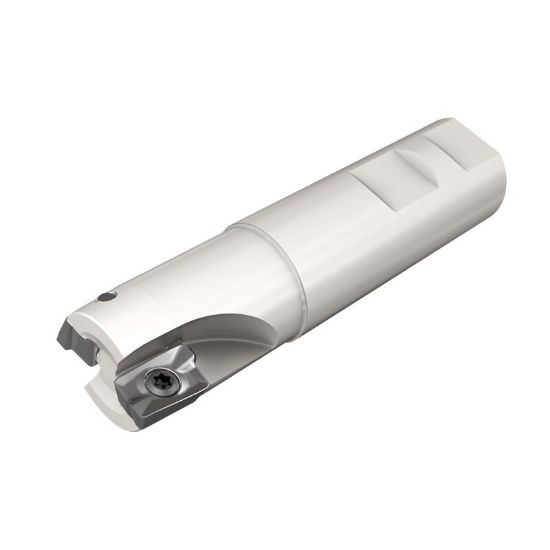

Picture of ISCAR HM90 E90AD-D1.5-2-W1.25 Milling Cutter 90.0° 1.500 Diameter Weldon 1.250 4.500 OAL 2 Flute

ISCAR HM90 E90AD-D1.5-2-W1.25 Milling Cutter 90.0° 1.500 Diameter Weldon 1.250 4.500 OAL 2 Flute

ANSI: HM90 E90AD-D1.5-2-W1.25

ISO: HM90 E90AD-D1.5-2-W1.25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3101879
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Shipping State Texas
Made In USA No
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Flutes/Inserts 2
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Insert Size Ic 15
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 0.5600
Cut Dia Min 1.5000 38.10MM - 1-1/2
Tool Material Steel
Machine Side Connection Type Weldon
Cutting & Machining Properties
Max Ramp Angle 4.00°
Insert Style AD
Coolant Thru No
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 7002441
