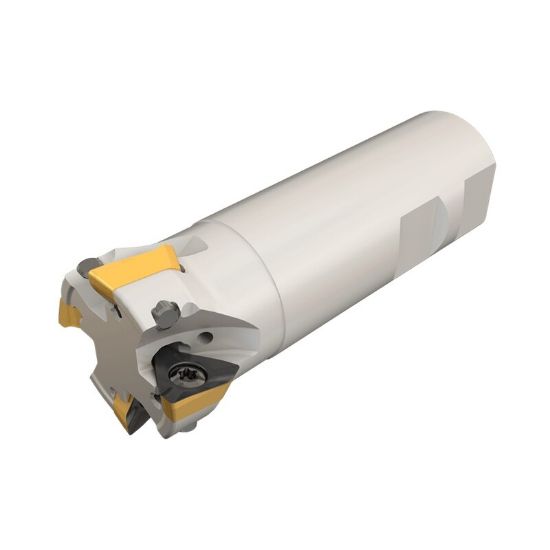

Picture of ISCAR HM390 ETD D1.5-3-W1.25-15 Milling Cutter 90.0° 1.500 Diameter Weldon 1.250 4.000 OAL 3 Flute

ISCAR HM390 ETD D1.5-3-W1.25-15 Milling Cutter 90.0° 1.500 Diameter Weldon 1.250 4.000 OAL 3 Flute

ANSI: HM390 ETD D1.5-3-W1.25-15

ISO: HM390 ETD D1.5-3-W1.25-15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106573
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Ramp Milling, Slot Milling, Side Milling, Face Milling, Pocket Milling
Insert/Tool Tool
Insert Type Positive
Package Size 1
Shipping State Texas
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Cut Dia Min 1.5000 38.10MM - 1-1/2
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Insert Size Ic 15
Depth Of Cut Max 0.5120
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Style TD
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Max Ramp Angle 2.10°
Fasteners & Connectors
Insert Screw 7000000
