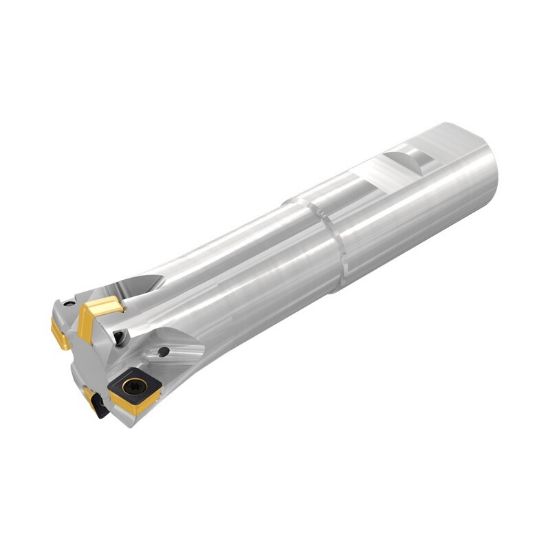

Picture of ISCAR FFQ4 D0.87-2-1.7-W0.75-09 Milling Cutter 0.875 Diameter Weldon 0.750 3.800 OAL 2 Flute

ISCAR FFQ4 D0.87-2-1.7-W0.75-09 Milling Cutter 0.875 Diameter Weldon 0.750 3.800 OAL 2 Flute

ANSI: FFQ4 D0.87-2-1.7-W0.75-09

ISO: FFQ4 D0.87-2-1.7-W0.75-09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3323704
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Face Milling, Copy Milling, Feed Milling
Insert Type Positive
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Texas
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 3.8000 96.52MM
Insert Size Ic 9
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cut Dia Max 0.8750 22.23MM - 7/8
Flutes/Inserts 2
Cutter Dia 0.8750 22.23MM - 7/8
Cut Dia Min 0.3110 7.90MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.0470
Cutting & Machining Properties
Coolant Thru Yes
Insert Style FF
Max Ramp Angle 8.00°
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 7006979
