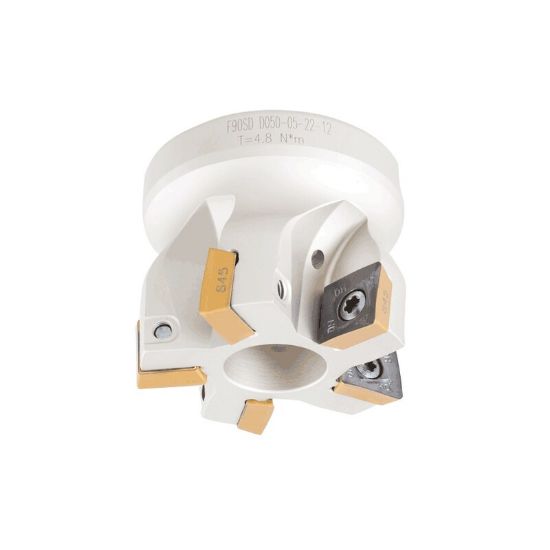

Picture of ISCAR F90SD D2.50-06-1.00-12 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 6 Flute

ISCAR F90SD D2.50-06-1.00-12 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 6 Flute

ANSI: F90SD D2.50-06-1.00-12

ISO: F90SD D2.50-06-1.00-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3319840
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Insert Type Positive
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Cut Dia Max 2.5000 63.50MM - 2-1/2
Tool Material Steel
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 6
Depth Of Cut Max 0.4650
Overall Len 1.7500 44.45MM
Cutter Dia 2.5000 63.50MM - 2-1/2
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Square
Insert Style SD
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7006977
