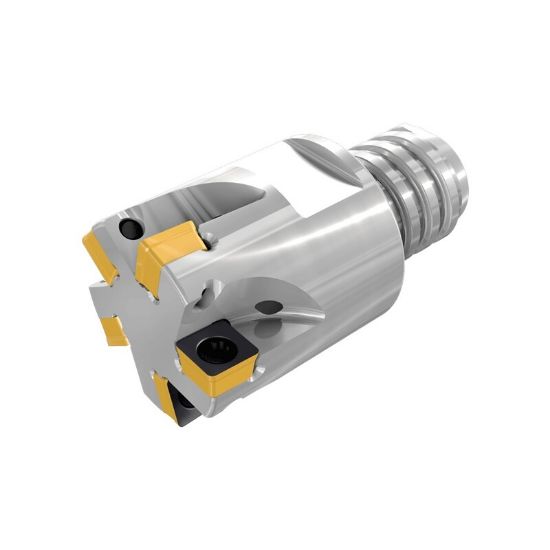

Picture of ISCAR E90SO D.62-05-MMT10-04-C Milling Cutter 0.625 Diameter Screw On T10 1.200 OAL 5 Flute

ISCAR E90SO D.62-05-MMT10-04-C Milling Cutter 0.625 Diameter Screw On T10 1.200 OAL 5 Flute

ANSI: E90SO D.62-05-MMT10-04-C

ISO: E90SO D.62-05-MMT10-04-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3350639
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Copy Milling, Feed Milling, Face Milling, Ramp Milling, Slot Milling
Insert Type Positive
Insert/Tool Tool
Package Size 1
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Machine Side Connection Type Screw On
Overall Len 1.2000 30.48MM
Cut Dia Min 0.6250 15.88MM - 5/8
Depth Of Cut Max 0.1380
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Flutes/Inserts 5
Machine Side Connection Size T10
Insert Size Ic 4
Cutter Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SO
Cool Sply Type External
Coolant Thru No
Max Ramp Angle 2.00°
Fasteners & Connectors
Insert Screw 7006178
