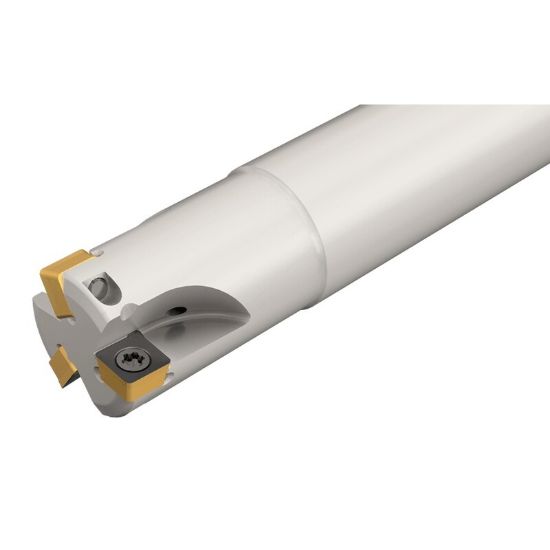

Picture of ISCAR E90SO D.50-03-C.50-04-C Milling Cutter 0.500 Diameter Round 0.500 3.500 OAL 3 Flute

ISCAR E90SO D.50-03-C.50-04-C Milling Cutter 0.500 Diameter Round 0.500 3.500 OAL 3 Flute

ANSI: E90SO D.50-03-C.50-04-C

ISO: E90SO D.50-03-C.50-04-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3340331
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Slot Milling, Face Milling, Copy Milling, Feed Milling
Package Size 1
Made In USA No
Insert/Tool Tool
Insert Application General Purpose
Shipping State Texas
Dimensional Specifications
Cut Dia Max 0.5000 12.70MM - 1/2
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Machine Side Connection Size 0.5000 12.70MM
Depth Of Cut Max 0.1380
Cut Dia Min 0.5000 12.70MM - 1/2
Insert Size Ic 4
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Max Ramp Angle 3.00°
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Insert Style SO
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7006178
