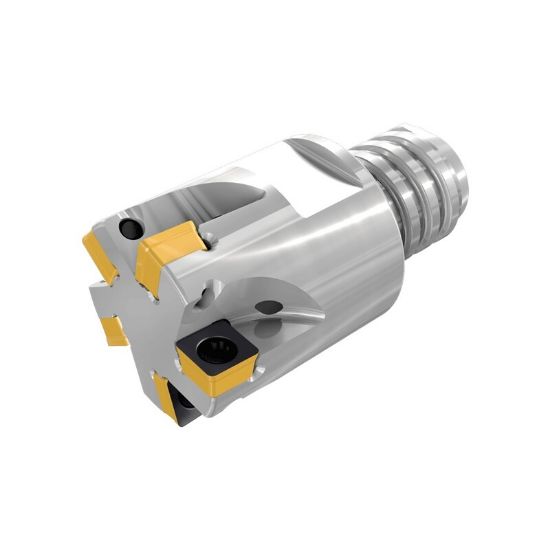

Picture of ISCAR E90SO D.38-02-MMT06-04-C Milling Cutter 0.375 Diameter Screw On T06 0.770 OAL 2 Flute

ISCAR E90SO D.38-02-MMT06-04-C Milling Cutter 0.375 Diameter Screw On T06 0.770 OAL 2 Flute

ANSI: E90SO D.38-02-MMT06-04-C

ISO: E90SO D.38-02-MMT06-04-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3350637
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Copy Milling, Feed Milling, Face Milling, Ramp Milling, Slot Milling
Shipping State Texas
Package Size 1
Insert Type Positive
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 4
Depth Of Cut Max 0.1380
Tool Material Steel
Overall Len 0.7700 19.56MM
Cut Dia Min 0.3750 9.53MM - 3/8
Machine Side Connection Type Screw On
Flutes/Inserts 2
Cut Dia Max 0.3750 9.53MM - 3/8
Cutter Dia 0.3750 9.53MM - 3/8
Machine Side Connection Size T06
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SO
Cool Sply Type External
Coolant Thru No
Max Ramp Angle 6.00°
Fasteners & Connectors
Insert Screw 7006178
