  • ISCAR E90AC D1.00-.40W1.0 Milling Cutter 90.0°, Drill Mill 1.000 Diameter Weldon 1.000 4.020 OAL 2 Flute

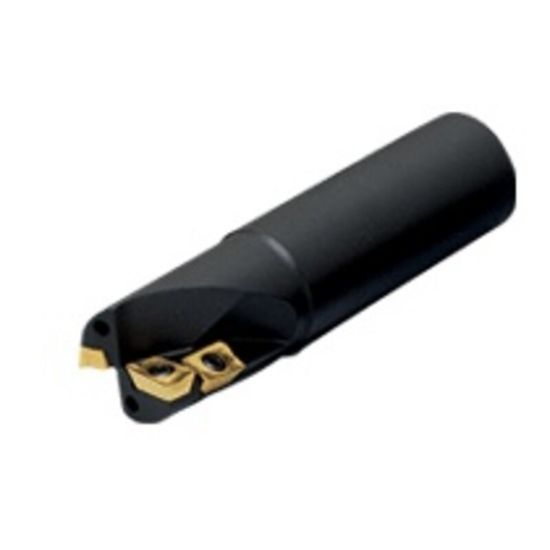

Picture of ISCAR E90AC D1.00-.40W1.0 Milling Cutter 90.0°, Drill Mill 1.000 Diameter Weldon 1.000 4.020 OAL 2 Flute

ISCAR E90AC D1.00-.40W1.0 Milling Cutter 90.0°, Drill Mill 1.000 Diameter Weldon 1.000 4.020 OAL 2 Flute

ANSI: E90AC D1.00-.40W1.0

ISO: E90AC D1.00-.40W1.0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100401
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Shoulder Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling, Drilling, Plunge Milling
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Depth Of Cut Max 0.7500
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Insert Size Ic 15
Cutter Dia 1.0000 25.40MM
Overall Len 4.0200 102.11MM
Flutes/Inserts 2
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Style AD
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 7002441
