  • ISCAR D3N 0669-100-075R-1.5D 0.669" Exchangeable Head 3 Flute Drill s with Coolant Holes and Round Shank, Drill ing Depth 1.5xD

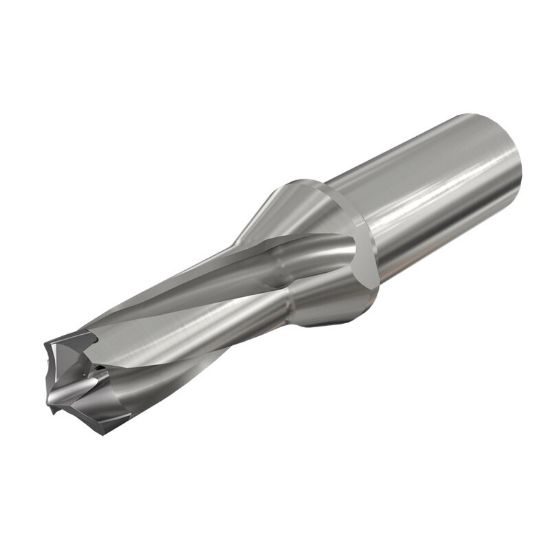

Picture of ISCAR D3N 0669-100-075R-1.5D 0.669" Exchangeable Head 3 Flute Drill s with Coolant Holes and Round Shank, Drill ing Depth 1.5xD

ISCAR D3N 0669-100-075R-1.5D 0.669" Exchangeable Head 3 Flute Drill s with Coolant Holes and Round Shank, Drill ing Depth 1.5xD

ISO: D3N 0669-100-075R-1.5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3362950
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Drilling, Single Insert Drilling
Made In USA No
Package Size 1
Dimensional Specifications
Flutes/Inserts 1
Dia Deep 1.5XD
Flute Length 1.3900 35.31MM
Cut Dia Max 0.7050 17.91MM
Machine Side Connection Type Cylindrical
Cutter Dia 0.6692 17.00MM
Cut Dia Min 0.6692 17.00MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 4.3590 110.72MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
