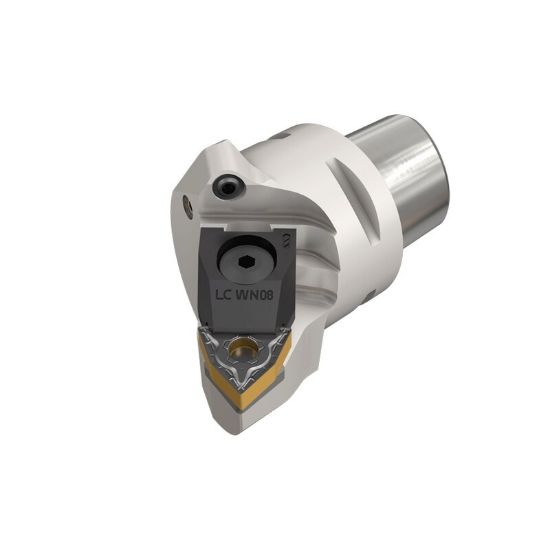

Picture of ISCAR C5 MULNR 35060-12MW Turning Stick Tool Trigon Insert 1.968 PSC "Capto Type"

ISCAR C5 MULNR 35060-12MW Turning Stick Tool Trigon Insert 1.968 PSC "Capto Type"

ANSI: C5 MULNR 35060-12MW

ISO: C5 MULNR 35060-12MW

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3606617
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Only LC WN08 is supplied with the toolholder. The other two wedges should be ordered separately. RH wedge for RH tool. LH wedge for LH tool.

Details

MULTI-WEDGE tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying the negative 80° rhombic or trigon or square inserts.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Texas
Application Ext.Turning
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.9685 50.00MM
Insert Size Ic 4
Tool Material Steel
Overall Len 3.5430 89.99MM
Lead Angle 95°, 75°
Shank/Pilot Dia 1.9685 50.00MM
Machine Side Connection Type PSC "Capt0 Type"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style WN,CN
Hand R/L Right
