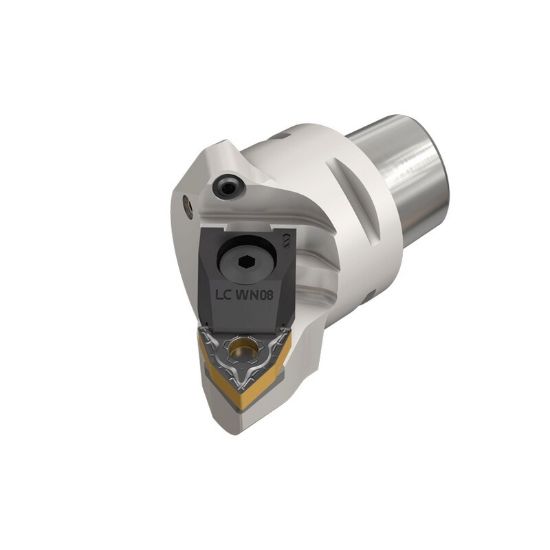

Picture of ISCAR C5 MULNL 35060-12MW Turning Stick Tool Trigon Insert 1.968 PSC "Capto Type"

ISCAR C5 MULNL 35060-12MW Turning Stick Tool Trigon Insert 1.968 PSC "Capto Type"

ANSI: C5 MULNL 35060-12MW

ISO: C5 MULNL 35060-12MW

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3602127
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Only LC WN08 is supplied with the toolholder. The other two wedges should be ordered separately. RH wedge for RH tool. LH wedge for LH tool.

Details

MULTI-WEDGE tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying the negative 80° rhombic or trigon or square inserts.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Dimensional Specifications
Lead Angle 95°, 75°
Shank/Pilot Dia 1.9685 50.00MM
Insert Size Ic 4
Tool Material Steel
Overall Len 3.5430 89.99MM
Machine Side Connection Type PSC "Capt0 Type"
Machine Side Connection Size 1.9685 50.00MM
Cutting & Machining Properties
Hand R/L Left
Insert Style WN,CN
Insert Shape/Cutter Pocket Shape Rectagonal
