  • ISCAR APK D1.25-1.75W1.25FE Milling Cutter 90.0°, Corn Cob 1.250 Diameter Weldon 1.250 4.500 OAL 12 Flute

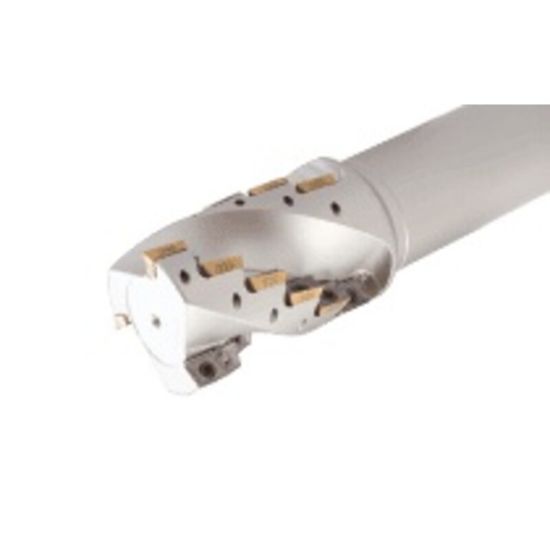

Picture of ISCAR APK D1.25-1.75W1.25FE Milling Cutter 90.0°, Corn Cob 1.250 Diameter Weldon 1.250 4.500 OAL 12 Flute

ISCAR APK D1.25-1.75W1.25FE Milling Cutter 90.0°, Corn Cob 1.250 Diameter Weldon 1.250 4.500 OAL 12 Flute

ANSI: APK D1.25-1.75W1.25FE

ISO: APK D1.25-1.75W1.25FE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100275
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Made In USA No
Application Side Milling, Long Edge Milling
Insert Type Positive
Insert/Tool Tool
Shipping State Texas
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 10
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Depth Of Cut Max 2.0600
Cutter Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Flutes/Inserts 12
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Style AP
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru No
Fasteners & Connectors
Insert Screw 7002441
