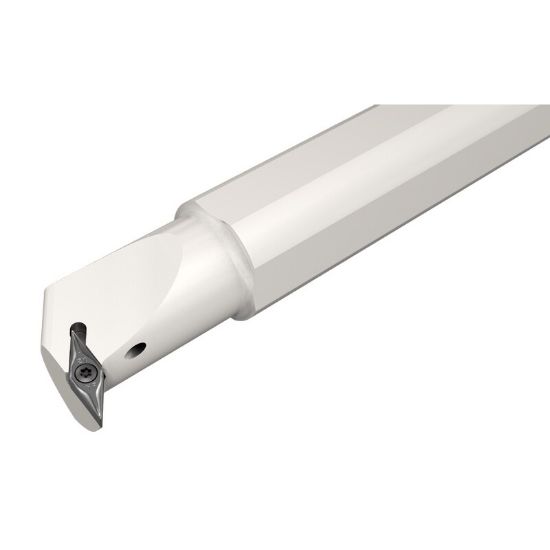

Picture of ISCAR A-SVUNL 20-2.5 Turning Boring Bar 35.0° Insert 1.250 Boring Bar

ISCAR A-SVUNL 20-2.5 Turning Boring Bar 35.0° Insert 1.250 Boring Bar

ANSI: A-SVUNL 20-2.5

ISO: A-SVUNL 20-2.5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3606583
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

For inserts with corner radius of .031" and larger, seat needs to be modified to ensure clearance.

Details

Boring bars with internal coolant holes carrying the 35° negative rhombic inserts.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Int.Turning
Insert/Tool Tool
Package Size 1
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Dimensional Specifications
Clearance Angle 50.0°
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 12 "2.5"
Lead Angle 93°
Overall Len 10.0000 254.00MM
Tool Material Steel
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Inter/Extern Internal
Insert Style VN
Insert Shape/Cutter Pocket Shape 35.0°
Hand R/L Left
