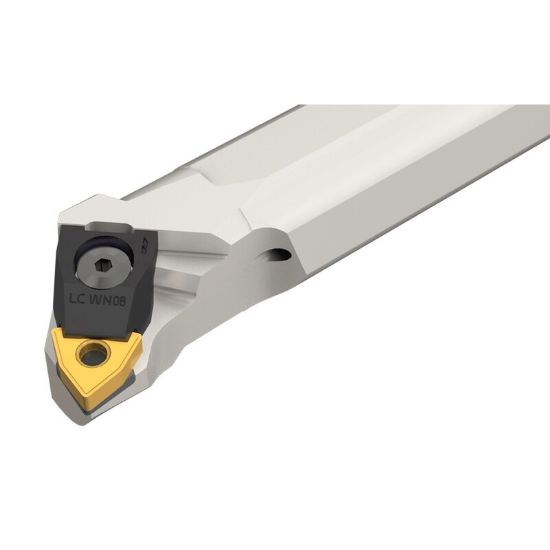

Picture of ISCAR A-MULNL 20-4MW Turning Boring Bar Trigon Insert 1.250 Boring Bar

ISCAR A-MULNL 20-4MW Turning Boring Bar Trigon Insert 1.250 Boring Bar

ANSI: A-MULNL 20-4MW

ISO: A-MULNL 20-4MW

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3602321
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Only LC WN08 is supplied with the boring bar. The other wedge should be ordered separately. RH wedge for RH tool. LH wedge for LH tool.

Details

MULTI-WEDGE lock, boring bars for negative 80° rhombic, trigon and square inserts.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Made In USA No
Package Size 1
Application Int.Turning
Dimensional Specifications
Tool Material Steel
Insert Size Ic 4
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.2500 31.75MM
Overall Len 14.0000 355.60MM
Lead Angle 95°
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Hand R/L Left
Insert Style WN,CN
Inter/Extern Internal
