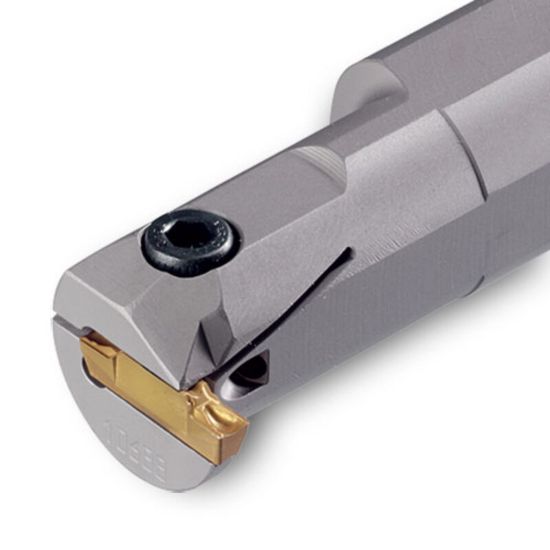

Picture of INGERSOLL TTIR31.7-5C Grooving,Groove Turning Boring Bar Boring Bar 1.250 Steel

INGERSOLL TTIR31.7-5C Grooving,Groove Turning Boring Bar Boring Bar 1.250 Steel

ANSI: TTIR31.7-5C

ISO: TTIR31.7-5C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2830082
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Internal turning, grooving and profiling holders

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Int.Grooving, Int.Groove Turning
Insert Type Positive
Package Size 1
Dimensional Specifications
Insert Size Ic 5
Tool Material Steel
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.2500 31.75MM
Min Bore 1.2600
Depth Of Cut Max 0.2600
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 10.0000 254.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Inter/Extern Internal
Coolant Thru Yes
Insert Style TD
Hand R/L Left
