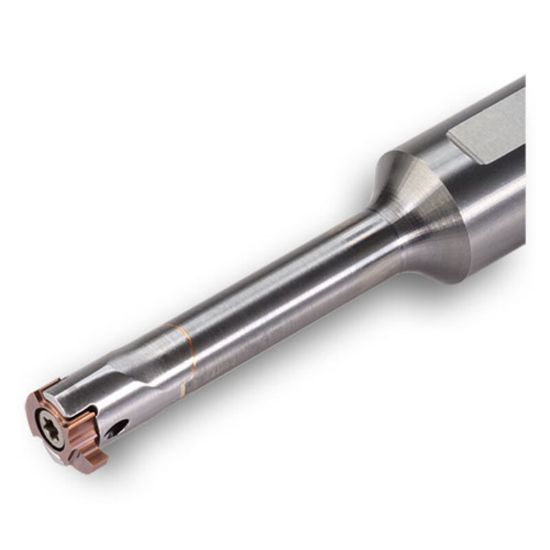

Picture of INGERSOLL TMIHN12.7C-32-8 Grooving Boring Bar Boring Bar 0.500 Carbide

INGERSOLL TMIHN12.7C-32-8 Grooving Boring Bar Boring Bar 0.500 Carbide

ANSI: TMIHN12.7C-32-8

ISO: TMIHN12.7C-32-8

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6210679
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Tool holders shallow internal grooivng and turning on small diameters Carbide shank

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Int.Grooving, Int.Groove Turning
Dimensional Specifications
Neck Length 1.2600 32.00MM
Machine Side Connection Size 0.5000 12.70MM
Min Bore 0.3940
Insert Size Ic 8
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Overall Len 4.0000 101.60MM
Tool Material Carbide
Cutting & Machining Properties
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Insert Style TM
