  • INGERSOLL KJ6P-40R02 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 6 Flute Coolant 0.57 Max DOC 2.375 OAL

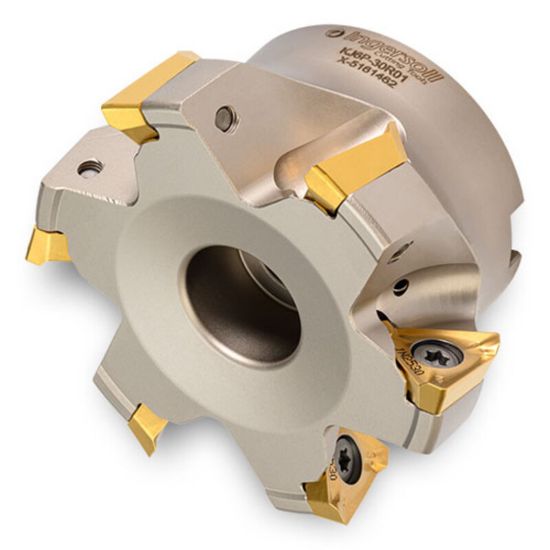

Picture of INGERSOLL KJ6P-40R02 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 6 Flute Coolant 0.57 Max DOC 2.375 OAL

INGERSOLL KJ6P-40R02 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 6 Flute Coolant 0.57 Max DOC 2.375 OAL

ANSI: KJ6P-40R02

ISO: KJ6P-40R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2926833
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Shipping State Illinois
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Insert Size Ic 13
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 6
Depth Of Cut Max 0.5700
Cutter Dia 4.0000 101.60MM
Overall Len 2.3750 60.33MM
Cut Dia Min 4.0000 101.60MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Max Ramp Angle 0.70°
Insert Style TH
Coolant Thru Yes
