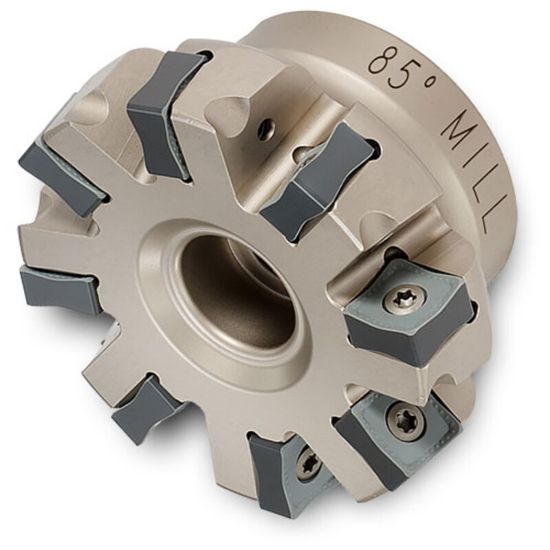

Picture of INGERSOLL DL6T-25R01 Milling Cutter 85.5° 2.500 Shell Arbor 0.7500 6 Flute 0.47 Max DOC 1.570 OAL

INGERSOLL DL6T-25R01 Milling Cutter 85.5° 2.500 Shell Arbor 0.7500 6 Flute 0.47 Max DOC 1.570 OAL

ANSI: DL6T-25R01

ISO: DL6T-25R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2911808
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Application Face Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Cutter Dia 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.5000 63.50MM - 2-1/2
Flutes/Inserts 6
Depth Of Cut Max 0.4700
Insert Size Ic 13
Cut Dia Max 2.6100 66.29MM
Tool Material Steel
Overall Len 1.5700 39.88MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Coolant Thru No
Insert Style SN
