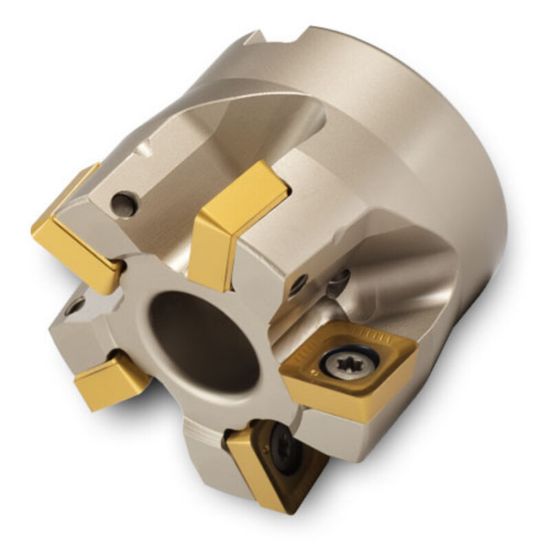

Picture of INGERSOLL 5J5P-20R01 Milling Cutter 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.45 Max DOC 1.570 OAL

INGERSOLL 5J5P-20R01 Milling Cutter 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.45 Max DOC 1.570 OAL

ANSI: 5J5P-20R01

ISO: 5J5P-20R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2912694
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Feed Milling, Ramp Milling, Slot Milling, Face Milling
Insert Type Positive
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Insert Application Roughing
Made In USA No
Dimensional Specifications
Cutter Dia 2.0000 50.80MM
Tool Material Steel
Overall Len 1.5700 39.88MM
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Insert Size Ic 13
Depth Of Cut Max 0.4500
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Coolant Thru Yes
Max Ramp Angle 3.00°
Insert Style SD
