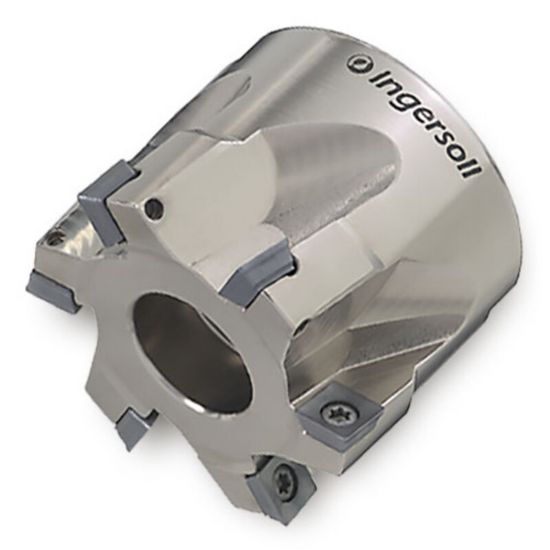

Picture of INGERSOLL 5J1E-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 7 Flute 0.31 Max DOC 1.750 OAL

INGERSOLL 5J1E-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 7 Flute 0.31 Max DOC 1.750 OAL

ANSI: 5J1E-30R01

ISO: 5J1E-30R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3012744
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Insert Application Medium, Roughing, Finishing
Made In USA No
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 3.0000 76.20MM
Tool Material Steel
Insert Size Ic 8
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 7
Cutter Dia 3.0000 76.20MM
Machine Side Connection Size 1.0000 25.40MM
Depth Of Cut Max 0.3100
Overall Len 1.7500 44.45MM
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Insert Style SD
Max Ramp Angle 0.50°
