  • INGERSOLL 5G5Q-30R02 Milling Cutter 3.000 Shell Arbor 1.2500 6 Flute Coolant 0.107 Max DOC 2.000 OAL

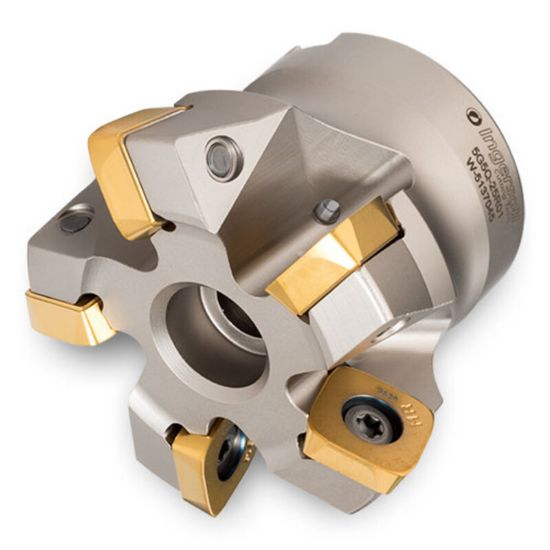

Picture of INGERSOLL 5G5Q-30R02 Milling Cutter 3.000 Shell Arbor 1.2500 6 Flute Coolant 0.107 Max DOC 2.000 OAL

INGERSOLL 5G5Q-30R02 Milling Cutter 3.000 Shell Arbor 1.2500 6 Flute Coolant 0.107 Max DOC 2.000 OAL

ANSI: 5G5Q-30R02

ISO: 5G5Q-30R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2923523
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Slot Milling, Copy Milling, Feed Milling, Face Milling
Package Size 1
Insert Application Roughing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 3.0000 76.20MM
Cut Dia Min 2.1440 54.46MM
Flutes/Inserts 6
Depth Of Cut Max 0.1070
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Overall Len 2.0000 50.80MM
Cut Dia Max 3.0000 76.20MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Coolant Thru Yes
Max Ramp Angle 2.40°
