  • INGERSOLL 2J1E-20R02 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.66 Max DOC 1.570 OAL

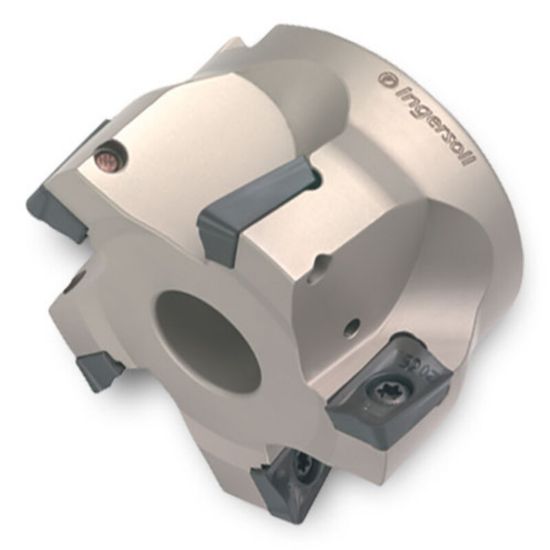

Picture of INGERSOLL 2J1E-20R02 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.66 Max DOC 1.570 OAL

INGERSOLL 2J1E-20R02 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.66 Max DOC 1.570 OAL

ANSI: 2J1E-20R02

ISO: 2J1E-20R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3017399
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing, Finishing
Application Side Milling, Pocket Milling, Ramp Milling, Slot Milling, Face Milling
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Package Size 1
Insert Type Positive
Dimensional Specifications
Cut Dia Min 2.0000 50.80MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Flutes/Inserts 5
Insert Size Ic 18
Depth Of Cut Max 0.6600
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 2.0000 50.80MM
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 3.00°
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
