  • INGERSOLL 1TJ1Q-1204281R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.43 Max DOC 6.500 OAL

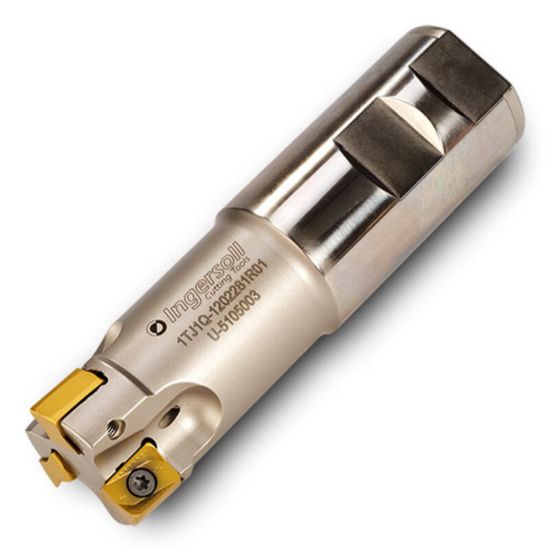

Picture of INGERSOLL 1TJ1Q-1204281R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.43 Max DOC 6.500 OAL

INGERSOLL 1TJ1Q-1204281R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.43 Max DOC 6.500 OAL

ANSI: 1TJ1Q-1204281R01

ISO: 1TJ1Q-1204281R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031343
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Negative
Shipping State Illinois
Insert/Tool Tool
Application Side Milling, Face Milling
Package Size 1
Dimensional Specifications
Insert Size Ic 12
Depth Of Cut Max 0.4300
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Overall Len 6.5000 165.10MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Cut Dia Min 1.2500 31.75MM - 1-1/4
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 1.00°
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
