  • INGERSOLL 1A7H-25R01 Milling Cutter Button Cutter 2.500 Shell Arbor 0.7500 5 Flute Coolant 0.2362 Max DOC 1.570 OAL

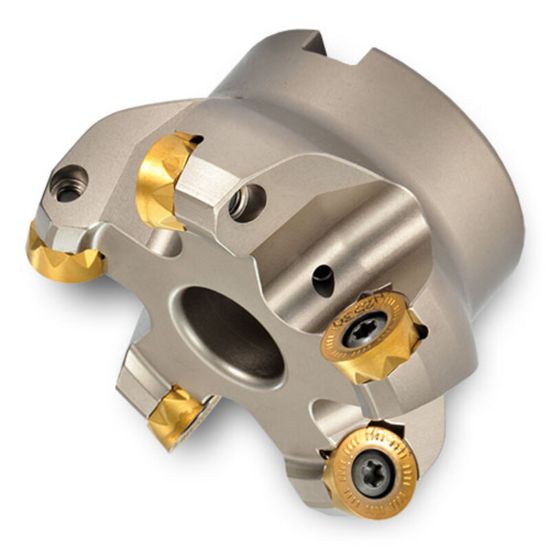

Picture of INGERSOLL 1A7H-25R01 Milling Cutter Button Cutter 2.500 Shell Arbor 0.7500 5 Flute Coolant 0.2362 Max DOC 1.570 OAL

INGERSOLL 1A7H-25R01 Milling Cutter Button Cutter 2.500 Shell Arbor 0.7500 5 Flute Coolant 0.2362 Max DOC 1.570 OAL

ANSI: 1A7H-25R01

ISO: 1A7H-25R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3032519
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Round Milling, Pocket Milling, Face Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Insert Size Ic 12
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 2.5000 63.50MM - 2-1/2
Cut Dia Min 2.0310 51.59MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Flutes/Inserts 5
Depth Of Cut Max 0.2362
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Insert Style RJ
Coolant Thru Yes
Max Ramp Angle 4.00°
