  • INGERSOLL 12S1Q-1001780R01 Milling Cutter 90.0°, Drill Mill 1.000 Weldon 1.0000 1 Flute Coolant 0.87 Max DOC 4.000 OAL

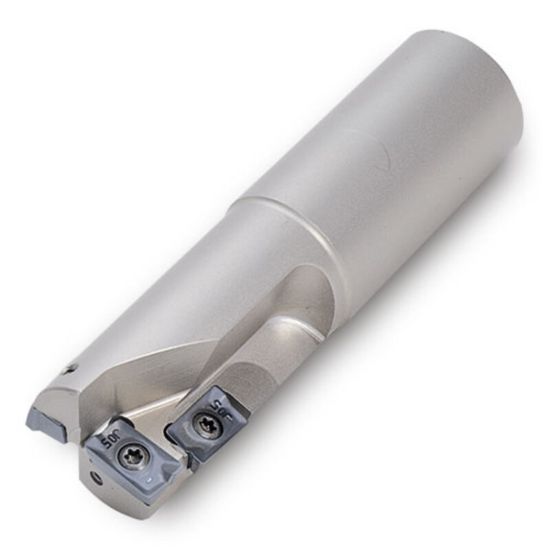

Picture of INGERSOLL 12S1Q-1001780R01 Milling Cutter 90.0°, Drill Mill 1.000 Weldon 1.0000 1 Flute Coolant 0.87 Max DOC 4.000 OAL

INGERSOLL 12S1Q-1001780R01 Milling Cutter 90.0°, Drill Mill 1.000 Weldon 1.0000 1 Flute Coolant 0.87 Max DOC 4.000 OAL

ANSI: 12S1Q-1001780R01

ISO: 12S1Q-1001780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3003318
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Insert Type Positive
Application Slot Milling, Plunge Milling, Side Milling, Drill Milling
Package Size 1
Insert/Tool Tool
Insert Application Roughing
Made In USA No
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Shank/Pilot Dia 1.0000 25.40MM
Depth Of Cut Max 0.8700
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Overall Len 4.0000 101.60MM
Insert Size Ic 12
Flutes/Inserts 1
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style AP
