  • INGERSOLL 12J4E-1502281R01 Milling Cutter 90.0° 1.500 Cylindrical 1.2500 3 Flute Coolant 0.66 Max DOC 4.500 OAL

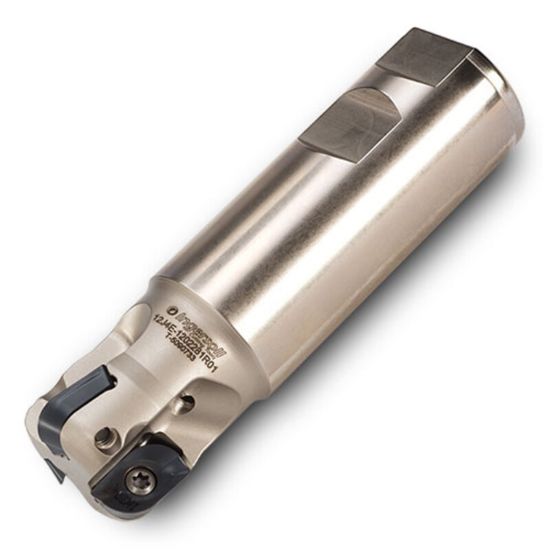

Picture of INGERSOLL 12J4E-1502281R01 Milling Cutter 90.0° 1.500 Cylindrical 1.2500 3 Flute Coolant 0.66 Max DOC 4.500 OAL

INGERSOLL 12J4E-1502281R01 Milling Cutter 90.0° 1.500 Cylindrical 1.2500 3 Flute Coolant 0.66 Max DOC 4.500 OAL

ANSI: 12J4E-1502281R01

ISO: 12J4E-1502281R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018698
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Flutes/Inserts 3
Cut Dia Min 1.5000 38.10MM - 1-1/2
Tool Material Steel
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Insert Size Ic 18
Depth Of Cut Max 0.6600
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru Yes
Max Ramp Angle 2.00°
