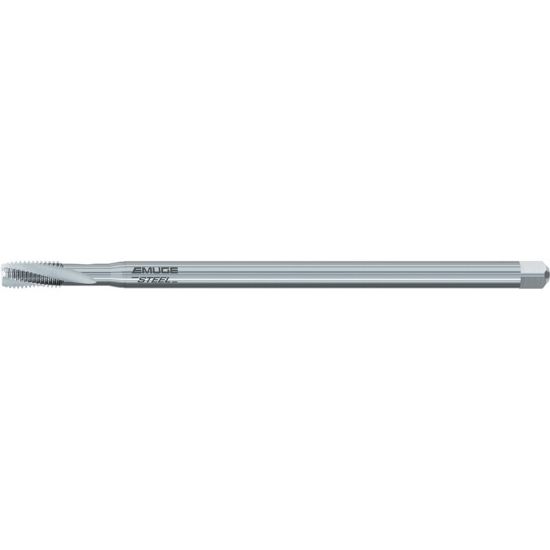

EMUGE B2461000.0030 Tap Bottoming M3-0.50MM 6H Metric DIN/DIN HSSE

ISO: B2461000.0030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB2461000.0030
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Tapping, Cut Tapping
Performance Rating High Performance
Shipping State Massachusetts
Made In USA No
Package Size 1
Dimensional Specifications
Thread Size M3
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.1370 3.48MM
Tool Material Steel
Thread Pitch 0.50MM
Machine Side Connection Type Tap Collet
Thread Limit 6H
Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Tap Square 0.1100
Tap Type Bottoming
Cut Rating <40HRC Steel, Stainless Steel
Length Type Long
Thread Type Metric
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Multi Spindle Yes
