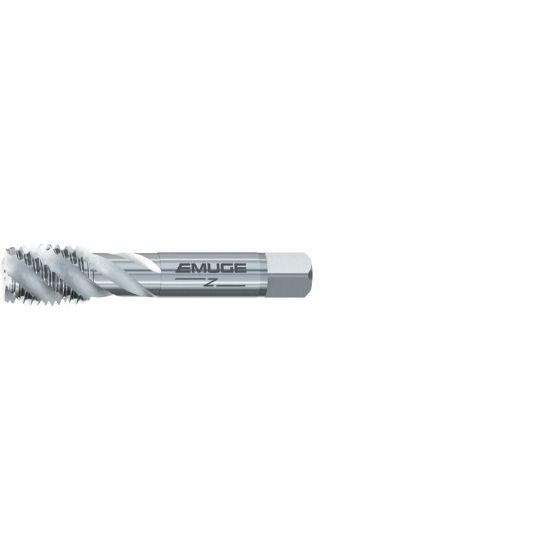

EMUGE AU513500.5004 Tap Bottoming No.5-40.00TPI 2B NC/UNC ANSI/ANSI HSSE

ISO: AU513500.5004

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU513500.5004
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Thread Limit 2B
Shank/Pilot Dia 0.1410 3.58MM
Thread Pitch 40.00TPI
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Overall Len 1.9370 49.20MM
Dimension Standard ANSI/ANSI
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Thread Size No.5
Thread Type NC/UNC
Flute Direction R - Right
Length Type Standard
Flutes/Inserts 3
Drill Range 0.0988 2.51MM - 0.1047 2.66MM
Tool Material Steel
Tap Square 0.1100
Tap Type Bottoming
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
