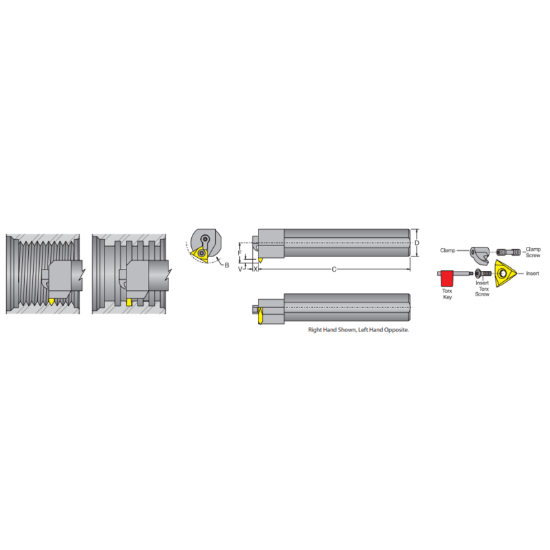

Picture of DORIAN S40V-MTHOR-5-C On Edge Boring Bar 2.500 Shank 16.00 OAL

DORIAN S40V-MTHOR-5-C On Edge Boring Bar 2.500 Shank 16.00 OAL

ANSI: S40V-MTHOR-5-C

ISO: S40V-MTHOR-5-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58324
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Int.Groove Threading, Int.Threading
Shipping State Texas
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Overall Len 16.0000 406.40MM
Min Bore 3.7500
Machine Side Connection Type Boring Bar
Insert Size Ic 5
Tool Material Steel
Machine Side Connection Size 2.5000 63.50MM
Shank/Pilot Dia 2.5000 63.50MM -2-1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ON EDGE
Inter/Extern Internal
Hand R/L Right
Coolant Thru No
Fasteners & Connectors
Insert Screw GTS-3
Clamp/Wedge CL-20
Clamp Screw XNS-47
