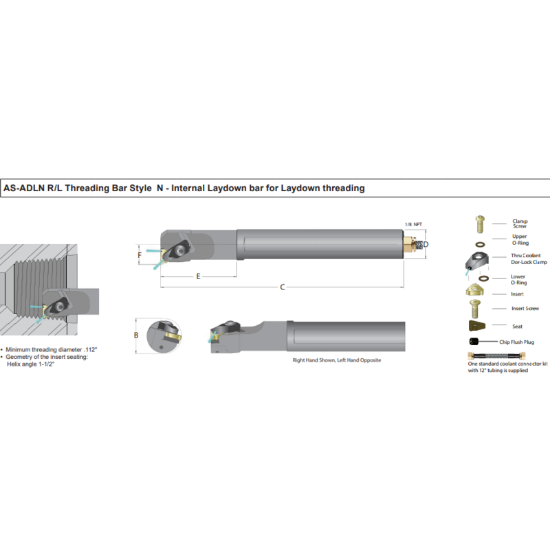

Picture of DORIAN AS-24S-ADLNR-22 Iso Thread Boring Bar 1.500 Shank 10.00 OAL

DORIAN AS-24S-ADLNR-22 Iso Thread Boring Bar 1.500 Shank 10.00 OAL

ANSI: AS-24S-ADLNR-22

ISO: AS-24S-ADLNR-22

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53543
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Application Int.Threading, Int.Groove Threading
Insert Application General Purpose
Made In USA No
Shipping State Texas
Insert Type Positive
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Min Bore 2.0000
Machine Side Connection Type Boring Bar
Insert Size Ic 22
Overall Len 10.0000 254.00MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 1.5000 38.10MM
Tool Material Steel
Cutting & Machining Properties
Insert Style ISO
Hand R/L Right
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Seat/Nest NXE/I-22
Fasteners & Connectors
Seat Screw TS-45.75-15M1
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HP22R-N
