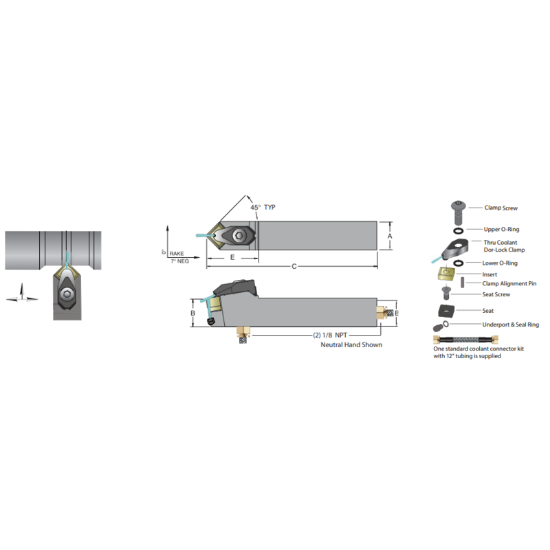

Picture of DORIAN ADSDNN-20-5D Square Square 1.250 Shank 6.000 OAL

DORIAN ADSDNN-20-5D Square Square 1.250 Shank 6.000 OAL

ANSI: ADSDNN-20-5D

ISO: ADSDNN-20-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53056
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

NegSquare JetStream ToolhldrNH

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Tool Width 1.2500
Lead Angle 45°
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Clearance Angle 40.0°
Overall Len 6.0000 152.40MM
Insert Size Ic 16 "54"
Tool Material Steel
Cutting & Machining Properties
Insert Style CN
Inter/Extern External
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type Through
Hand R/L Neutral
Coolant Thru Yes
Fasteners & Connectors
Clamp Screw JSCS-04
Seat Screw JS-533
Insert Screw SM-M6
Clamp/Wedge JSLC-HPC5
