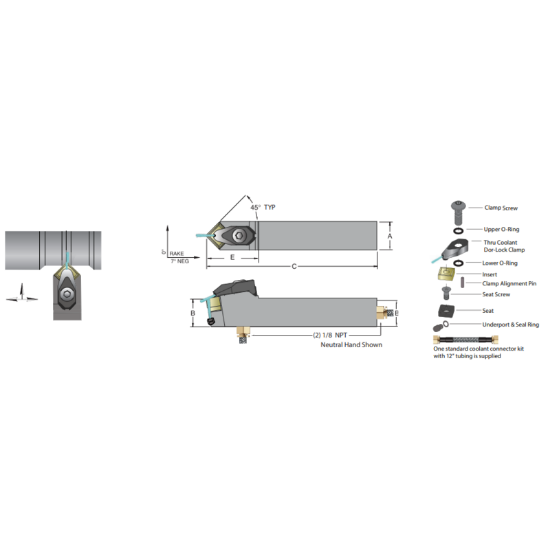

Picture of DORIAN ADSDNN-16-4D Square Square 1.000 Shank 6.000 OAL

DORIAN ADSDNN-16-4D Square Square 1.000 Shank 6.000 OAL

ANSI: ADSDNN-16-4D

ISO: ADSDNN-16-4D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53054
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

NegSquare JetStream ToolhldrNH

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 12 "43"
Overall Len 6.0000 152.40MM
Tool Width 1.0000
Lead Angle 45°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 40.0°
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Square
Hand R/L Neutral
Coolant Thru Yes
Insert Style SN
Cool Sply Type Through
Fasteners & Connectors
Clamp Screw JSCS-04
Seat Screw JS-432
Clamp/Wedge JSLC-HPCTW-4N
Insert Screw SM-S4
