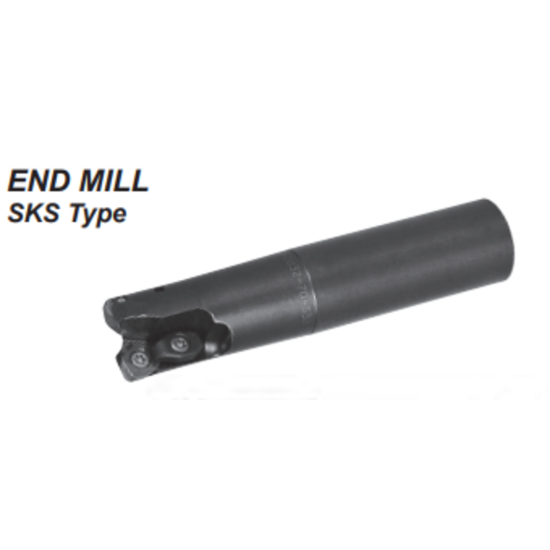

Picture of DIJET SKS-2125-6.5-S125 Milling Cutter Weldon 1.250 Shank 10.00 OAL 2 Flute

DIJET SKS-2125-6.5-S125 Milling Cutter Weldon 1.250 Shank 10.00 OAL 2 Flute

ANSI: SKS-2125-6.5-S125

ISO: SKS-2125-6.5-S125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSKS-2125-6.5-S125
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Face Milling, Copy Milling, Feed Milling
Insert Type Positive
Shipping State Michigan
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Machine Side Connection Type Weldon
Tool Material Steel
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Insert Size Ic 8
Depth Of Cut Max 0.0790
Machine Side Connection Size 1.2500 31.75MM
Overall Len 10.0000 254.00MM
Cutting & Machining Properties
Insert Style WD
Insert Shape/Cutter Pocket Shape Trigon
Fasteners & Connectors
Insert Screw DSW-4510H
