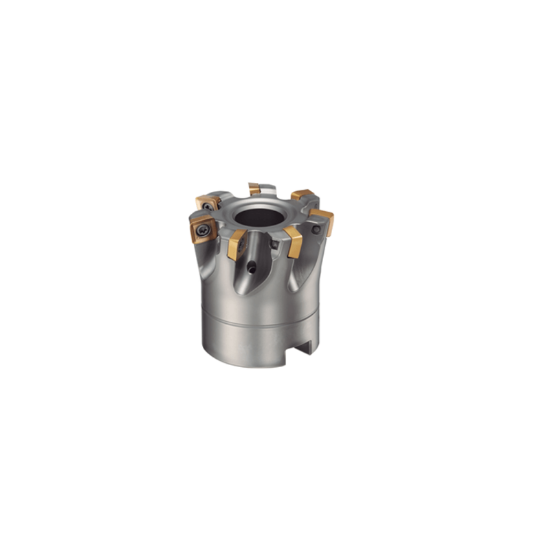

Picture of DIJET SKG-8066R-09-27 Feed Mill 2.598 Cutter Diameter Face Mill 0.629 Shank 1.968 OAL 8 Flute

DIJET SKG-8066R-09-27 Feed Mill 2.598 Cutter Diameter Face Mill 0.629 Shank 1.968 OAL 8 Flute

ANSI: SKG-8066R-09-27

ISO: SKG-8066R-09-27

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSKG-8066R-09-27
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Copy Milling, Feed Milling, Ramp Milling, Slot Milling
Shipping State Michigan
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Cutter Dia 2.5980 65.99MM
Overall Len 1.9685 50.00MM
Flutes/Inserts 8
Depth Of Cut Max 0.0350
Tool Material Steel
Insert Size Ic 09 "32"
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.6299 16.00MM
Cutting & Machining Properties
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
Max Ramp Angle 0.75°
Fasteners & Connectors
Insert Screw DSW-307H
