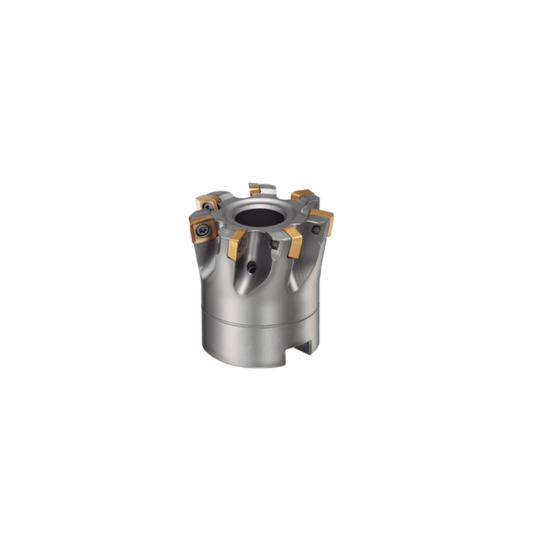

Picture of DIJET SKG-7052R-09-22 Feed Mill 2.047 Cutter Diameter Face Mill 0.866 Shank 1.968 OAL 7 Flute

DIJET SKG-7052R-09-22 Feed Mill 2.047 Cutter Diameter Face Mill 0.866 Shank 1.968 OAL 7 Flute

ANSI: SKG-7052R-09-22

ISO: SKG-7052R-09-22

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSKG-7052R-09-22
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Feed Milling, Ramp Milling, Face Milling, Slot Milling
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Insert Type Positive
Shipping State Michigan
Package Size 1
Dimensional Specifications
Overall Len 1.9685 50.00MM
Cutter Dia 2.0470 51.99MM
Insert Size Ic 09 "32"
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Tool Material Steel
Flutes/Inserts 7
Depth Of Cut Max 0.0350
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Max Ramp Angle 1.00°
Insert Style SD
Fasteners & Connectors
Insert Screw DSW-307H
