  • DIJET SEC-2100-2.0-S100 Milling Cutter 90.0°, Drill Mill 1.000 Cutter Diameter Weldon 1.000 Shank 5.000 OAL 7 Flute

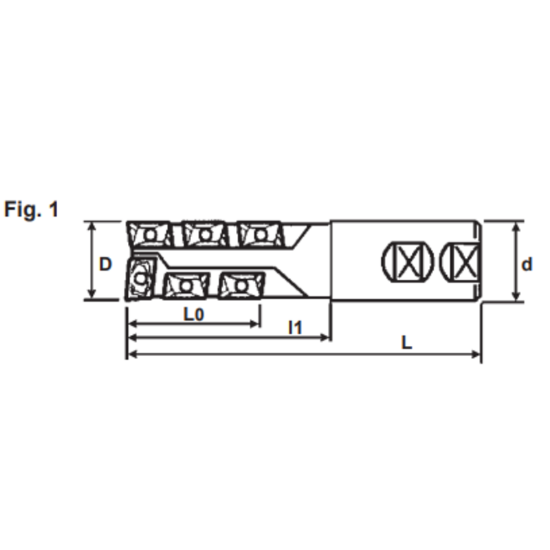

Picture of DIJET SEC-2100-2.0-S100 Milling Cutter 90.0°, Drill Mill 1.000 Cutter Diameter Weldon 1.000 Shank 5.000 OAL 7 Flute

DIJET SEC-2100-2.0-S100 Milling Cutter 90.0°, Drill Mill 1.000 Cutter Diameter Weldon 1.000 Shank 5.000 OAL 7 Flute

ANSI: SEC-2100-2.0-S100

ISO: SEC-2100-2.0-S100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSEC-2100-2.0-S100
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Application Plunge Milling, Shoulder Milling, Drilling, Pocket Milling, Side Milling, Ramp Milling, Slot Milling
Shipping State Michigan
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Insert Size Ic 13
Flutes/Inserts 7
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Length Of Cut 2.0000 50.80MM
Dimension Description 1.000 x 1.000 x 2.000 x 5.000
Overall Len 5.0000 127.00MM
Depth Of Cut Max 2.0000
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style ZD,ZP
Fasteners & Connectors
Insert Screw DWS-307H
