  • DIJET MEC-2062-M8 Milling Cutter 90.0°, Drill Mill 0.625 Cutter Diameter Screw On M08 Shank 0.900 OAL 2 Flute

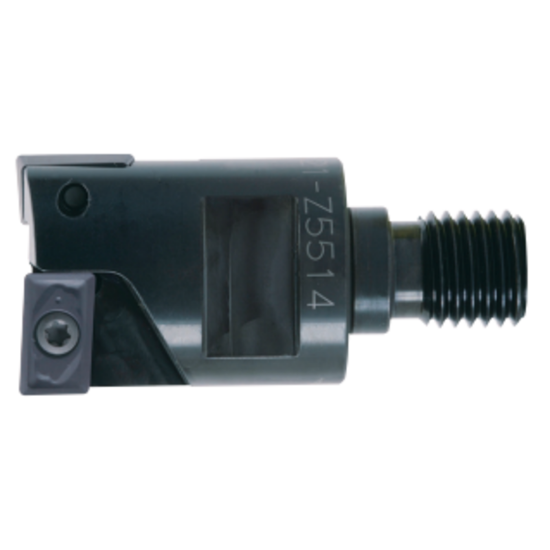

Picture of DIJET MEC-2062-M8 Milling Cutter 90.0°, Drill Mill 0.625 Cutter Diameter Screw On M08 Shank 0.900 OAL 2 Flute

DIJET MEC-2062-M8 Milling Cutter 90.0°, Drill Mill 0.625 Cutter Diameter Screw On M08 Shank 0.900 OAL 2 Flute

ANSI: MEC-2062-M8

ISO: MEC-2062-M8

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJMEC-2062-M8
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Shoulder Milling, Ramp Milling, Side Milling, Slot Milling, Pocket Milling, Drilling, Plunge Milling
Shipping State Michigan
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Dimensional Specifications
Machine Side Connection Type Screw On
Machine Side Connection Size M08
Cutter Dia 0.6250 15.88MM - 5/8
Length Of Cut 0.3000 7.62MM
Tool Material Steel
Insert Size Ic 8
Depth Of Cut Max 0.3000
Overall Len 0.9000 22.86MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Style ZD,ZP
Insert Shape/Cutter Pocket Shape Other
Fasteners & Connectors
Insert Screw TSW-2250
