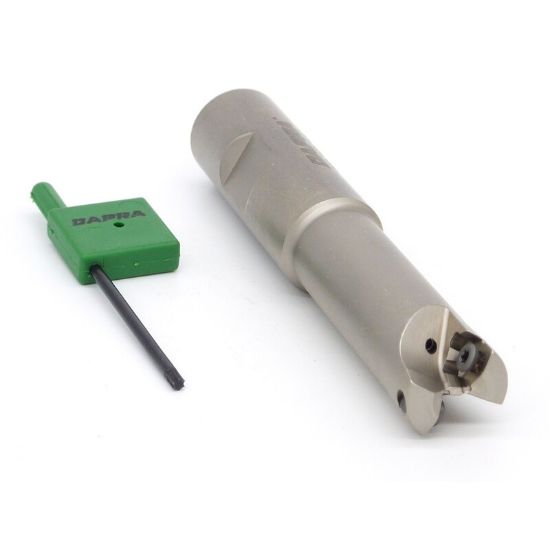

Picture of DAPRA HFEM075-200-R2-2 Feed Mill 0.750 Cutter Diameter Weldon 0.750 Shank 4.030 OAL 2 Flute

DAPRA HFEM075-200-R2-2 Feed Mill 0.750 Cutter Diameter Weldon 0.750 Shank 4.030 OAL 2 Flute

ANSI: HFEM075-200-R2-2

ISO: HFEM075-200-R2-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DAPRA
SKU: DAP60040
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Copy Milling, Feed Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Application General Purpose
Made In USA Yes
Insert/Tool Tool
Shipping State Connecticut
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Insert Size Ic 8
Overall Len 4.0300 102.36MM
Machine Side Connection Type Weldon
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Insert Style RF
Hand R/L Right
