  • DAPRA CMEM0500-30-R35-2 30.0°, Chamfer Mill 0.500 Cutter Diameter Weldon 0.750 Shank 3.500 OAL 2 Flute

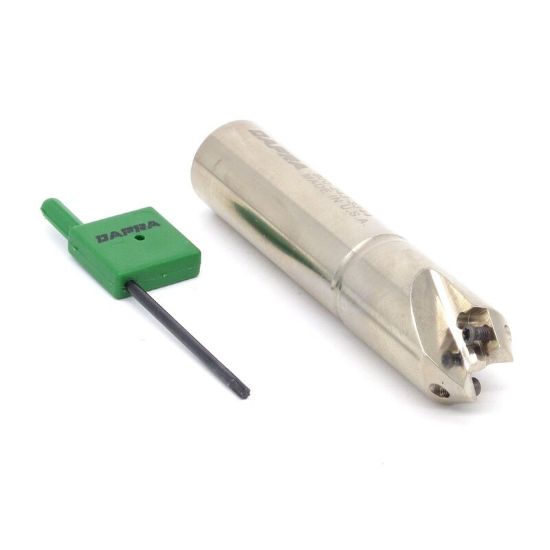

Picture of DAPRA CMEM0500-30-R35-2 30.0°, Chamfer Mill 0.500 Cutter Diameter Weldon 0.750 Shank 3.500 OAL 2 Flute

DAPRA CMEM0500-30-R35-2 30.0°, Chamfer Mill 0.500 Cutter Diameter Weldon 0.750 Shank 3.500 OAL 2 Flute

ANSI: CMEM0500-30-R35-2

ISO: CMEM0500-30-R35-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DAPRA
SKU: DAP22248
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

GENERAL PURPOSE CHAFER TOOL USING TWO CORNER INSERT. LOTS OF GRADES AND EDGE PREPS AVAILABLE

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Tool
Application Chamfering
Insert Application General Purpose
Shipping State Connecticut
Made In USA Yes
Package Size 1
Dimensional Specifications
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Weldon
Insert Size Ic 10
Overall Len 3.5000 88.90MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style AP,XP
