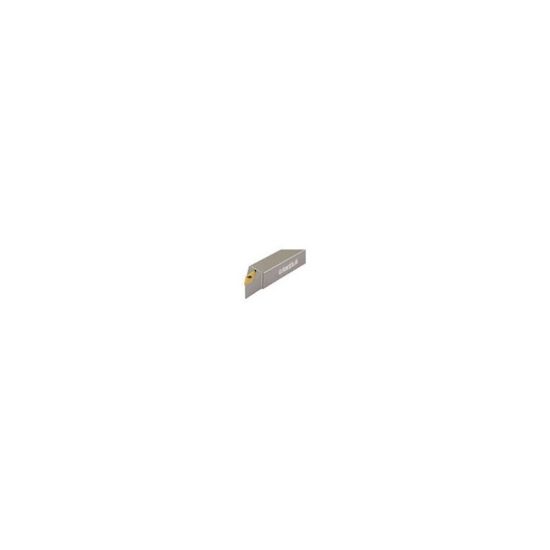

Picture of CANELA Tool SVJCR103D Turning Stick Tool 35.0° 0.625 Shank 6.00 OAL

CANELA Tool SVJCR103D Turning Stick Tool 35.0° 0.625 Shank 6.00 OAL

ANSI: SVJCR103D

ISO: SVJCR103D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANSVJCR103D
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert Type Positive
Application Ext.Turning
Shipping State Michigan
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Clearance Angle 50.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.6250 15.88MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Lead Angle 93°
Insert Size Ic 16 "33"
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Seat/Nest 3718
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VC
Inter/Extern External
Fasteners & Connectors
Insert Screw 1335
Seat Screw 1750
